Technical Details

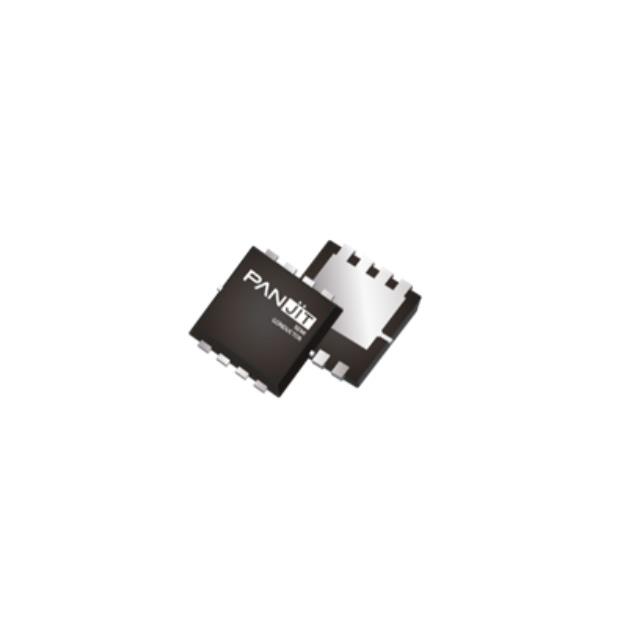

• Package / Case 8-PowerTDFN
• Mounting Type Surface Mount
• Configuration 2 N-Channel
• Operating Temperature -55°C ~ 175°C (TJ)
• Technology MOSFET (Metal Oxide)
• Power - Max 2.4W (Ta), 32W (Tc)
• Drain to Source Voltage (Vdss) 40V
• Current - Continuous Drain (Id) @ 25°C 10.5A (Ta), 35A (Tc)
• Input Capacitance (Ciss) (Max) @ Vds 673pF @ 25V
• Rds On (Max) @ Id, Vgs 13.4mOhm @ 10A, 10V
• Gate Charge (Qg) (Max) @ Vgs 9.5nC @ 10V
• Vgs(th) (Max) @ Id 3.5V @ 50µA
• Supplier Device Package DFN5060B-8
• Grade Automotive
• Qualification AEC-Q101
