Technical Details

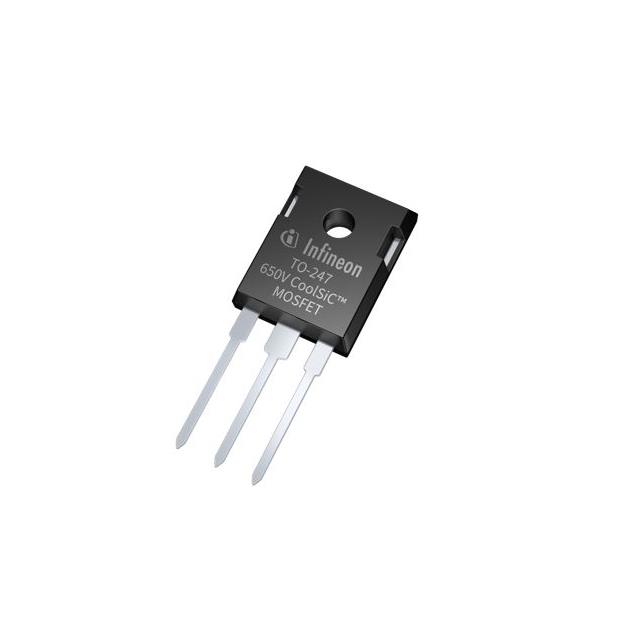

• Package / Case TO-247-3
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 175°C (TJ)
• Technology SiC (Silicon Carbide Junction Transistor)
• FET Type N-Channel
• Current - Continuous Drain (Id) @ 25°C 83A (Tc)
• Rds On (Max) @ Id, Vgs 18mOhm @ 46.9A, 20V
• Power Dissipation (Max) 273W (Tc)
• Vgs(th) (Max) @ Id 5.6V @ 9.5mA
• Supplier Device Package PG-TO247-3-40
• Drive Voltage (Max Rds On, Min Rds On) 15V, 20V
• Vgs (Max) +23V, -7V
• Drain to Source Voltage (Vdss) 650 V
• Gate Charge (Qg) (Max) @ Vgs 57 nC @ 18 V
• Input Capacitance (Ciss) (Max) @ Vds 2038 pF @ 400 V
